Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement
Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement
지금 연락

Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement

원래 장소: 중국 브랜드 이름: topsky

상세 정보
광원 유형: 파란색 레이저 라이트; 자주색 레이저 조명 다른 이름: Coverall Type 의료 분리 가운
최대 탐지: ≥2.5km (차량) 헬멧: 709.4m/초
회전: 0-120rpm 물탱크 용량: 16L
탐지 응답 시간: 실시간 감지 기능을 갖춘 2초 이하 드릴 사이즈: 4/5/6/8 밀리미터
메인 엔진 중량: 28kg 헬멧 쉘: ≥720m/s
LCD 디스플레이: 2.0 인치 전체 HD 디스플레이 유효성: 전세계 구매 가능
힘: 24V 제동 거리: ≤0.11m
제어 방법: 배터리 구동
강조하다:

Intrinsically Safe Infrared Thermal Imager

,

Real-time Detection Thermal Imaging Device

,

Multi-point Temperature Measurement Mine Safety Equipment

제품 설명

Mine-used Intrinsically Safe Infrared Thermal Imager
Product Overview
The YRH800 mine-used intrinsically safe infrared thermal imager is designed for thermal imaging and temperature measurement in coal mine environments. It employs a non-cooled focal plane infrared detector to present infrared thermal spectrum data in high-definition, high-sensitivity pseudo-color image format with multi-point temperature measurement capability.
Images, videos, and voice recordings can be stored on a Micro SD card for in-depth computer analysis and statistical processing. Suitable for all personnel including technicians, operators, and managers in explosive hazard environments.
Key Applications
  • Detection of high-temperature areas and real-time temperature difference imaging
  • Identification of coal seam spontaneous combustion areas in ventilation work areas
  • Search and rescue operations for locating trapped personnel in dark conditions
Technical Specifications
Display & Resolution Digital display with resolution ≥0.1°C, capable of indicating positive/negative values
Operating Modes Photo mode and temperature measurement mode with photo/video recording capability
Data Management Storage, recall, deletion, and playback functions
Temperature Measurement Maximum, minimum, and average temperature measurement for points, lines, and surfaces
Display Options Multiple pseudo-color and color scale display options
Alarm Functions High-temperature alarm, low-temperature alarm, preset temperature alarm with adjustable alarm points and emissivity settings
Focusing System Manual and automatic focusing functions
Interface Features Background light switch, brightness adjustment, °C/°F conversion, trigger lock
Operation Interface Physical keyboard with Chinese menu operation interface
Performance Characteristics
  • Repeatability: ≤0.5°C
  • Alarm accuracy: Alarm display value within ±1.0°C of set value
  • Audible alarm function when temperature exceeds preset points
Power & Safety Specifications
Battery Module Model PL123450, rechargeable, two 1600mAh manganese oxide lithium batteries
Electrical Parameters Maximum open-circuit voltage: 8.4V DC; Maximum short-circuit current: 1.6A
Explosion-proof Certification Mine intrinsically safe type, explosion-proof mark: Ex ibⅠMb
Construction ABS + silicone shell
Weight 1.0kg
Dimensions 283×103×160mm
Protection Rating IP54

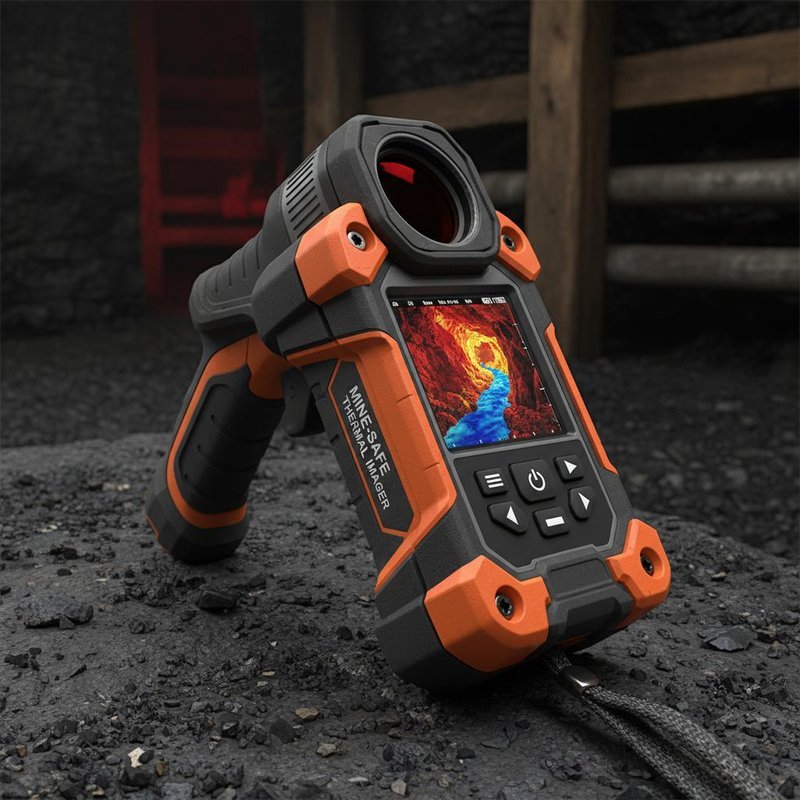

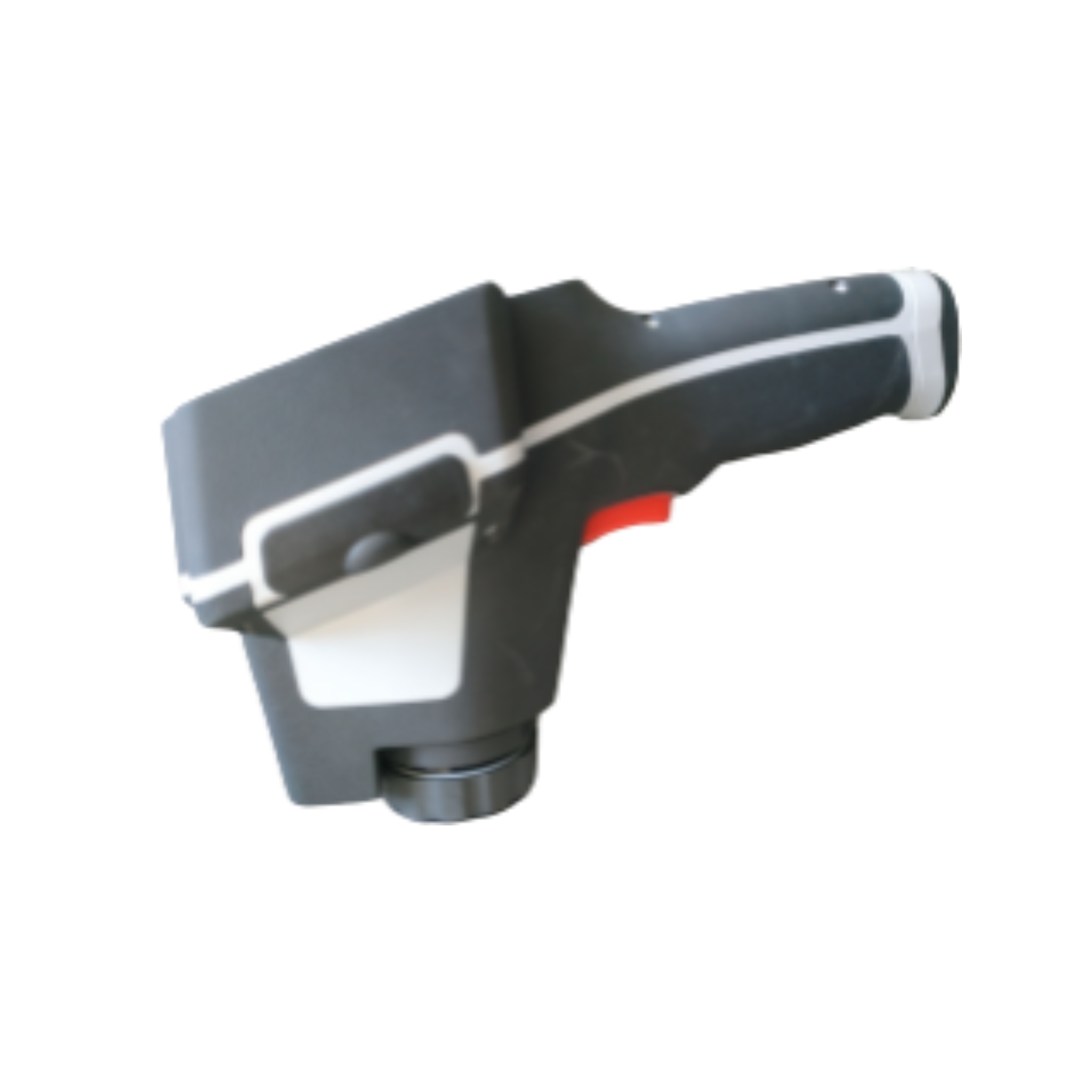

Product Images
Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement 0 Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement 1 Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement 2 Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement 3
