| 원래 장소: | 중국 | 브랜드 이름: | topsky |
|---|
|
상세 정보 |
|||
| 드릴 사이즈: | 4/5/6/8 밀리미터 | 기능성: | 다기능 |
|---|---|---|---|
| 운반 무게: | <30kg | 예어: | 안전성 화학 안전복 |
| 상대습도: | 0 내지 95% | 애플리케이션: | 반대 테러 |
| 기갑 폭발판: | 1800m/s(사타구니, 가슴, 목) | 방위각 범위: | 0°~360° |
| 투명한 창: | ≥750m/s | 각도: | 120도 |
| 재료: | 고강도 합금 및 복합재 | 다른 이름: | Coverall Type 의료 분리 가운 |
| 배터리: | 7알카라인 건전지 1.5AAA*2 | 보호 수준: | 9mm 및 .44mag용 NIJ IIIA |
| 겉감: | Bulleteproof : Aramid UD | ||
| 강조하다: | 7 Parameters Detection Gas Detector,LCD Display Safety Monitoring Device,Audible and Visual Alarm Multi-parameter Detection Alarm Instrument |
||
제품 설명

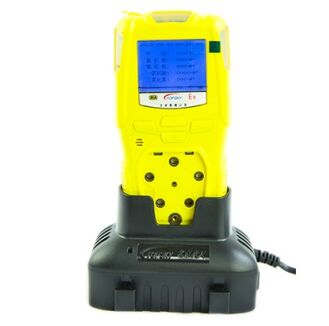

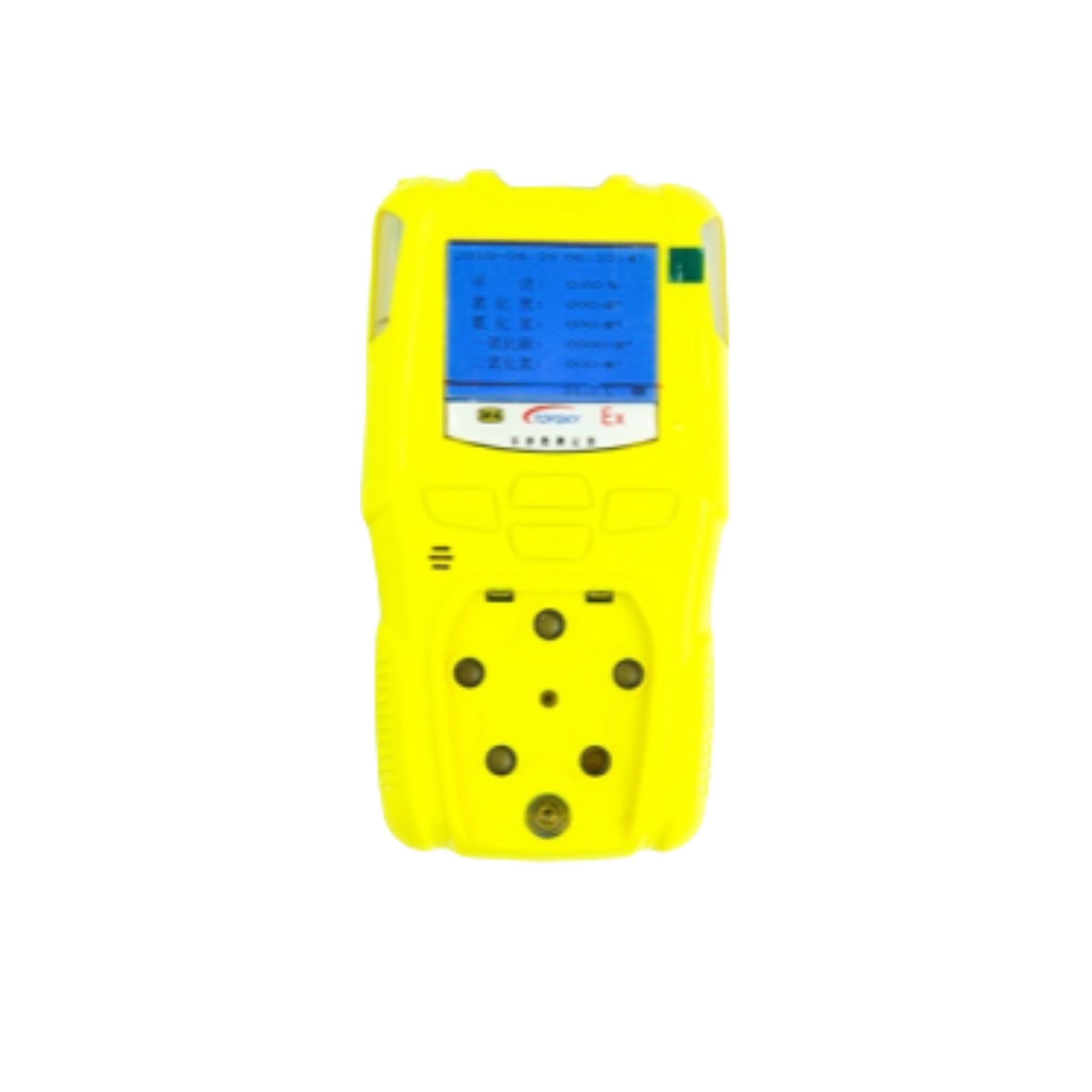

The YQ7 multi-parameter detection alarm instrument simultaneously and continuously detects 7 parameters including CH4, O2, CO, CO2, H2S, °C, and m/s, triggering audible and visual alarms when parameters exceed preset limits. Utilizing an 8-bit microcontroller and high-precision detection components, this instrument delivers high sensitivity and rapid response. The 3-inch color LCD provides clear, reliable display for all operational personnel including technicians, operators, and management.
| Parameter | Measurement Range | Resolution |
|---|---|---|
| Methane (CH4) | 0 - 100% (VOL) | 0.01% |
| Oxygen (O2) | 0 - 30% (VOL) | 0.1% |
| Carbon Monoxide (CO) | 0 - 1000 ppm | 1 ppm |
| Hydrogen Sulfide (H2S) | 0 - 100 ppm | 1 ppm |
| Temperature | -20.0 - 60.0 ℃ | 0.1 ℃ |
| Wind Speed | 0.4 - 30.0 m/s | 0.1 m/s |
Display: LCD shows real-time data and system status with vibration, sound and light alarm, fault and under-voltage indication
Audible Alarm: ≥75 dB(A) at 1 meter distance
Visual Alarm: Visible ≥20 meters in darkness
Power Supply: 1600 mAH lithium manganese oxide lithium-ion battery with protection board and overcurrent protection
Battery Specifications: Maximum open-circuit voltage: 4.3V, Maximum short-circuit current: 1.0A
Operating Time: 10 hours (non-alarm state)
Housing Material: ABS engineering plastic
Protection Rating: IP54
Weight: 1 kg
Dimensions: 160mm × 85mm × 43mm
