Mine-used Intrinsically Safe Infrared Thermal Imager with Non-contact Temperature Measurement and High-definition Pseudo-color Image

원래 장소:	중국	브랜드 이름:	topsky

상세 정보
파손 너비:	60-140cm	특징:	비컨택트
견인력:	≥5240N	프린터 용 Communicaiton:	블루투스
목적:	테러공격 예방 및 대응	Stanard 기간:	320 분
동력원:	충전식 배터리 또는 외부 전원 공급 장치	해결:	＞ 20 (TNT 용)
총 중량:	２１ｋｇ	속도:	2s
달다:	15.5kg	재료:	고급 강철, 케블라, 복합 재료
유선 제어 거리:	1000M	제조업체:	다양한 전문 방산업체
응답 시간:	1 초 미만
강조하다:	Intrinsically Safe Infrared Thermal Imager , Non-contact Temperature Measurement Thermal Imaging Device , High-definition Pseudo-color Image Mine-used Thermal Imager

제품 설명

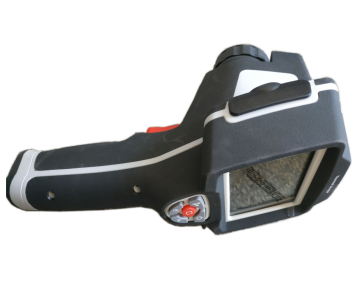

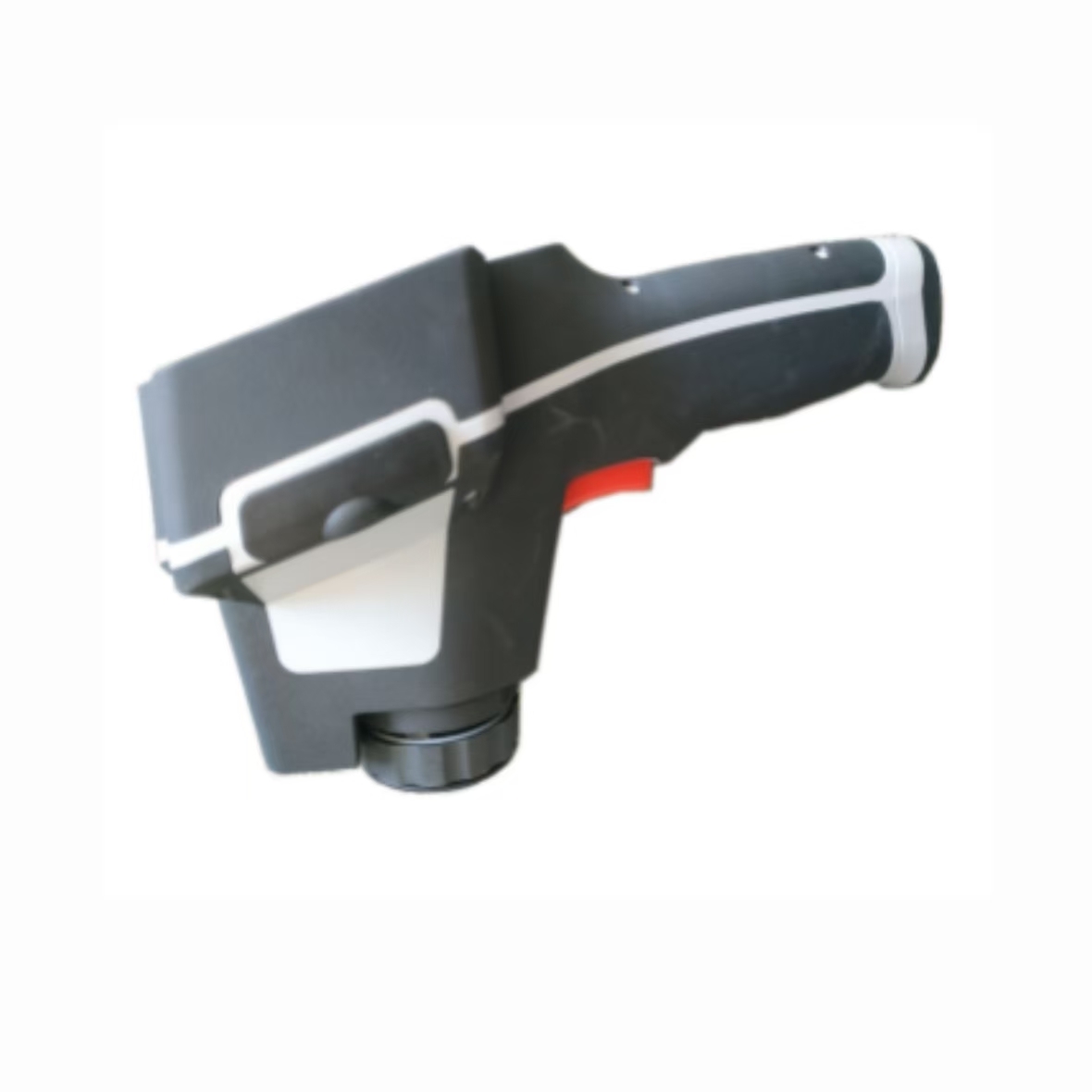

Mine-Used Intrinsically Safe Infrared Thermal Imager

The YRH800 mine-used intrinsically safe infrared thermal imager is designed for thermal imaging and temperature measurement in coal mine environments. This advanced thermal imaging device utilizes a non-cooled focal plane infrared detector to deliver high-definition, high-sensitivity pseudo-color thermal imaging with multi-point temperature measurement capabilities.

Product Overview

This thermal imager captures and stores infrared thermal spectrum data in images, videos, and audio recordings on a Micro SD card for comprehensive computer analysis and statistical evaluation. Suitable for all personnel including technicians, operators, and management teams, it enables reliable thermal detection in explosive hazard environments.

Applications include detecting high-temperature zones, real-time temperature differential imaging, identifying coal seam spontaneous combustion areas in ventilation workspaces, and assisting rescue teams in locating trapped personnel under low-visibility conditions.

Key Features

Digital display with 0.1°C resolution and positive/negative value indication
Dual operation modes: photo capture and temperature measurement with real-time video recording
Comprehensive data management: storage, retrieval, deletion, and playback functions
Advanced temperature measurement: maximum, minimum, and average temperatures for points, lines, and surfaces
Multiple pseudo-color and color scale display options
Programmable alarm system: high-temperature, low-temperature, and preset temperature alarms
Manual and automatic focusing capabilities
Background light control with brightness adjustment
°C/°F conversion with trigger lock functionality
User-friendly operation keyboard with Chinese menu interface

Technical Specifications

Temperature Measurement Repeatability	≤ 0.5°C
Alarm System Accuracy	±1.0°C deviation from set value with audible alarm activation
Battery Module	Model PL123450, rechargeable, dual 1600mAh manganese oxide lithium batteries
Maximum Open-Circuit Voltage	8.4V DC
Maximum Short-Circuit Current	1.6A
Explosion-Proof Certification	Mine intrinsically safe type, Ex ibⅠMb
Housing Material	ABS + silicone construction
Weight	1.0kg
Dimensions	283 × 103 × 160mm
