Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range
Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range
지금 연락

Lightweight Explosive Disposal Robot with 10KG Grab & 500m Range

원래 장소: 중국 브랜드 이름: topsky

상세 정보
측정 범위: 0-550mg / 100 밀리람베르트 마구: 1200mm × 80mm
검출 모드: 자동적으로 깨진 유리 용량: ≤12mm 템퍼 유리
프라이머 직경: 38mm 다른 이름: Coverall Type 의료 분리 가운
각도: 120도 조작기 맥스 횡령: 10kg
삶: 100건의 총격 사건 제어 방식: 배터리 전원
보호 수준: NIJ 수준 IIIA 메인 엔진 중량: 28kg
시스템 전원 공급: AC220V/80W 자주색 가벼운 힘: 700mW
수직 조정: 0-30cm
강조하다:

lightweight explosive disposal robot

,

10kg grab bomb disposal robot

,

500m range counter terrorism robot

제품 설명

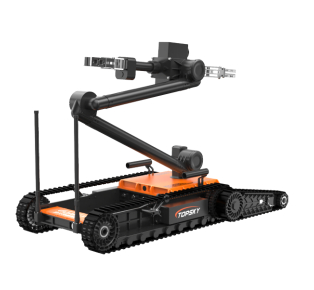

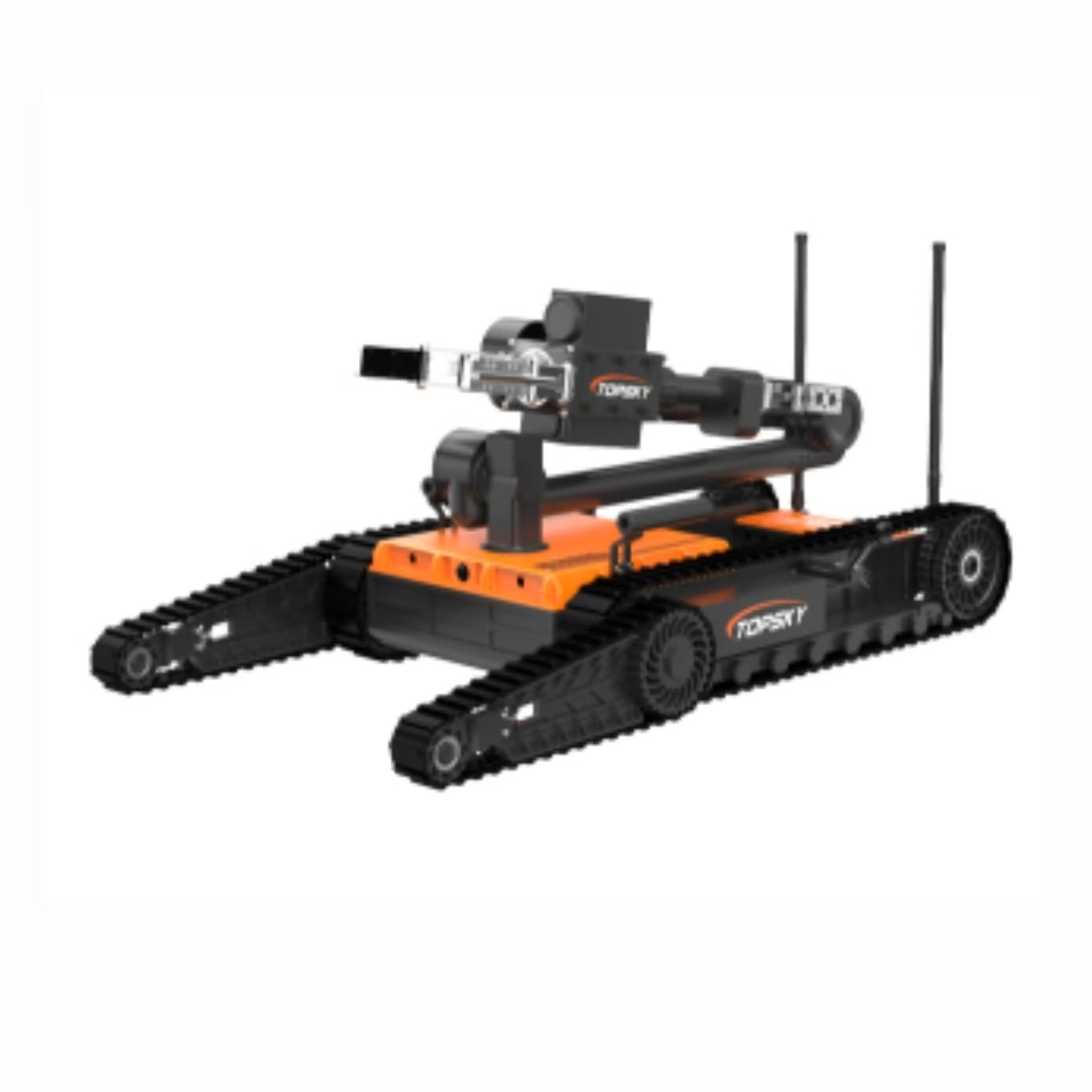

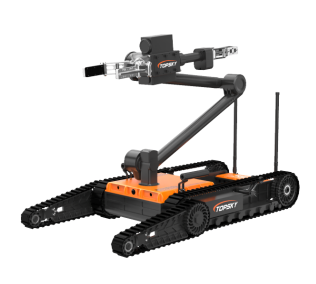

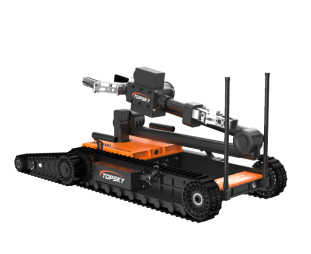

Lightweight Explosive Ordnance Disposal Robot
Overview
Designed for explosive handling and reconnaissance in inaccessible terrain, this EOD robot features a 7-degree-of-freedom robotic arm capable of rotating at various angles. The arm can lift up to 16kg at the proximal end and 3kg at the gripper, and can be equipped with explosive destruction devices for on-site neutralization.
Key Features
  • Advanced Robotic Arm: 7 degrees of freedom with 15 preset shortcut functions and one-click reset
  • Superior Mobility: Climbs 45° slopes, 43° stairs, overcomes 30cm obstacles, and crosses 40cm trenches
  • Enhanced Vision System: 4 HD cameras plus 1 pan-tilt-zoom camera with 1km communication range
  • Modular Design: Robotic arm, battery, and control box components for easy maintenance
  • Dual Control: Wired operation capability for environments with network interference
Technical Specifications
Model ER3 Generation 9
Dimensions ≤ 830mm (L) × 600mm (W) × 450mm (H) in transport state
Weight ≤ 37kg
Power Lithium Polymer Battery
Max Speed ≥ 1.8m/s with variable speed control
Operation Time ≥ 4 hours continuous
Control Range ≥ 500m wireless (visual)
Protection Rating IP65 (whole machine)
Compliance GA/T 142-1996 Police Industry Standard
Performance Capabilities
  • Slope climbing: ≥ 45°
  • Stair climbing: ≥ 43°
  • Obstacle clearance: ≥ 300mm
  • Trench crossing: ≥ 400mm
  • Water fording: 200mm depth
  • Braking distance: ≤ 0.1m
  • Straight running deviation: ≤ 3%
