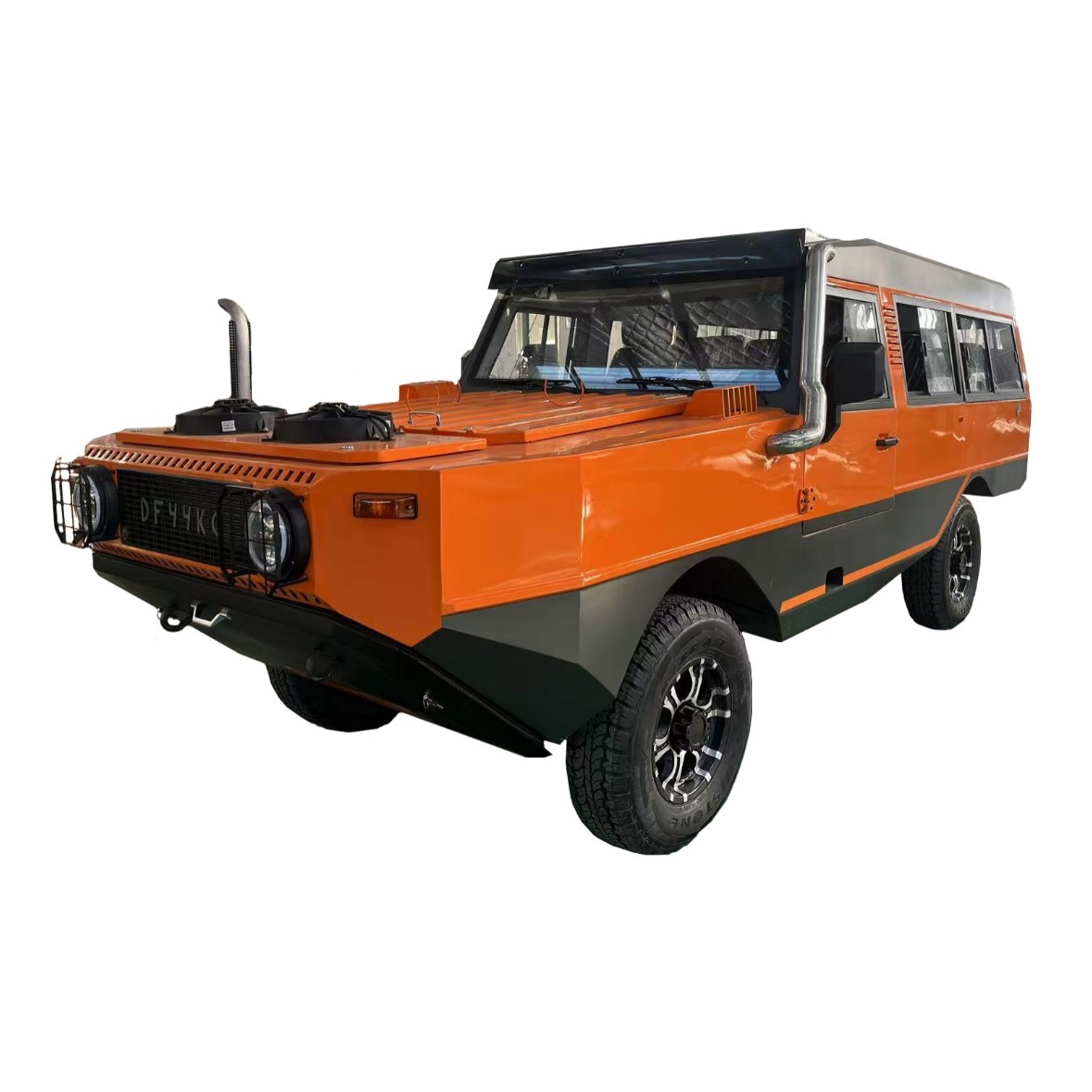

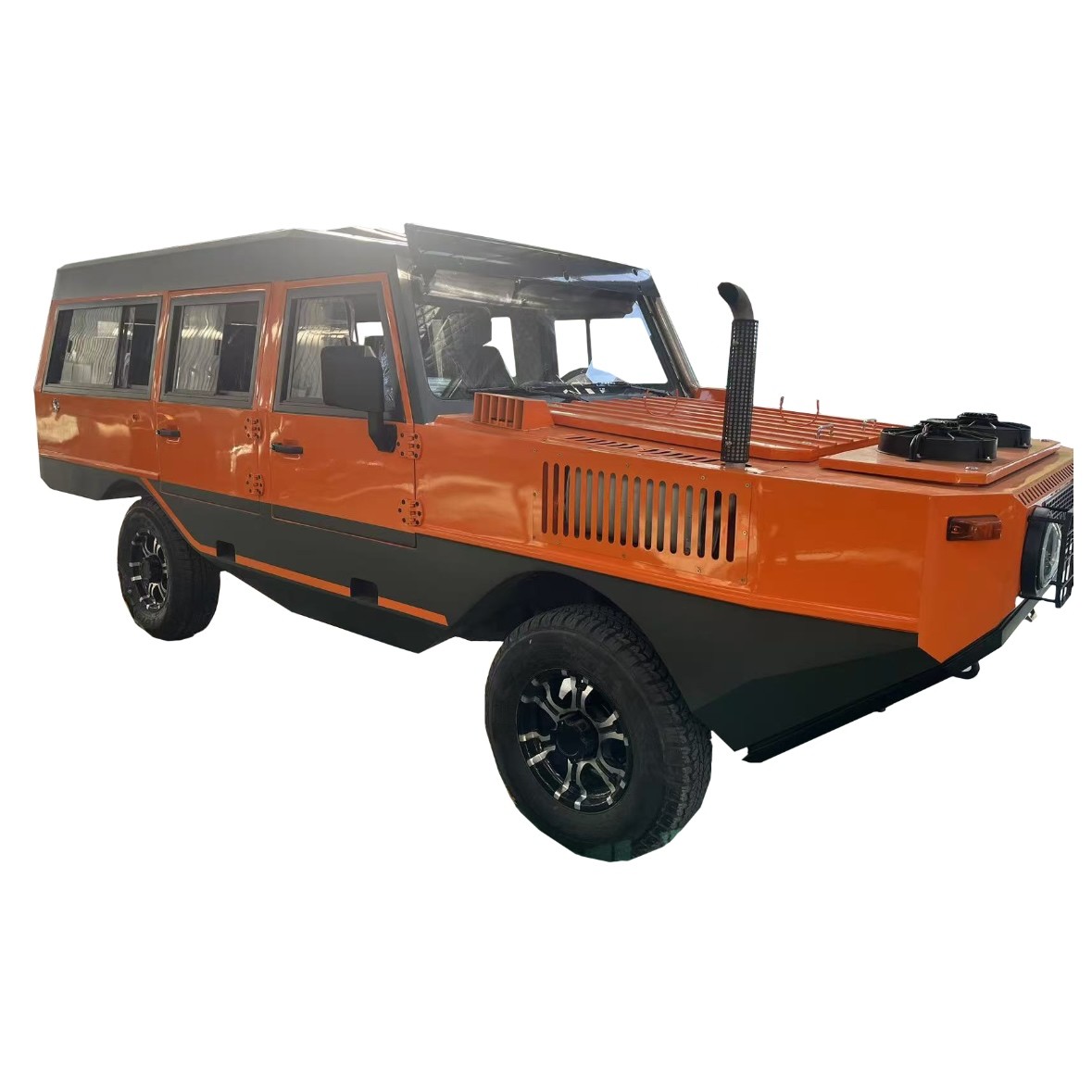

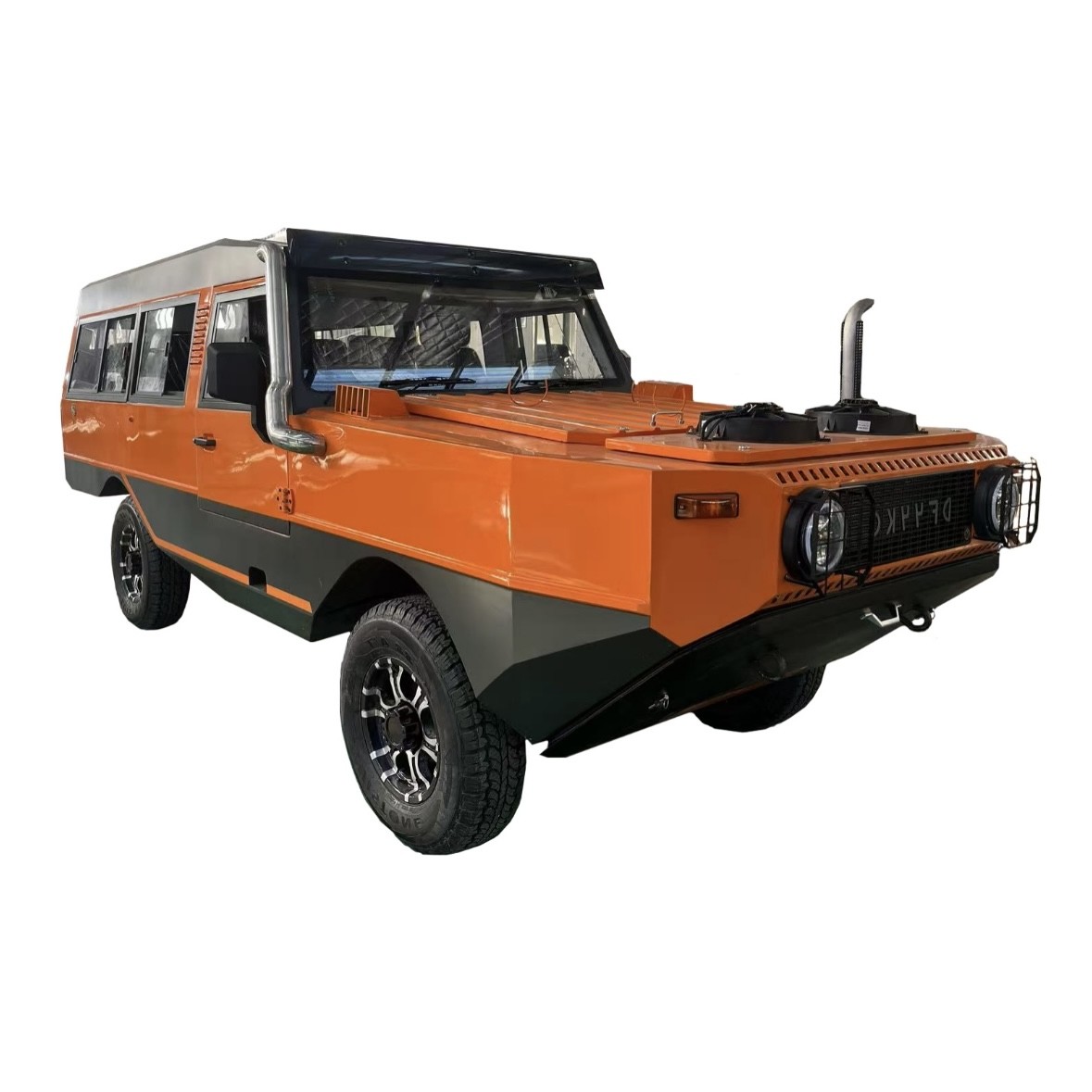

I. Product Overview
Search and rescue
In complex and harsh terrain conditions and natural environments, amphibious all-terrain vehicles can enable search and rescue team members and the rescue equipment they carry to reach the rescue site quickly, reduce the consumption of walking gear, and complete the last mile of emergency rescue tasks within the best five minutes. The amphibious all-terrain vehicle can be equipped with point-to-winch, rescue stretcher assembly, searchlight, warning light, alarm, unhooking, demolition tools and other equipment, providing rescue support for the rescue team and enabling safer rescue of the injured and evacuation of the masses.
Fire fighting and extinguishing
When a fire breaks out, in complex terrain and environment, there is no time to wait for heavy rescue equipment to arrive at the scene smoothly and in time. The amphibious all-terrain vehicle can be immediately ready to deploy firefighters and use the spray and foam equipment carried on the vehicle to suppress the fire source at the scene. Equip the same facilities to protect fire-prone areas and prevent risks before they occur.
Mountain rescue
Mountain rescue means that rescue vehicles must have strong adaptability to different terrains and natural climates. Rescue vehicles need to have excellent climbing ability and strong passability. Not only does it have to deal with the tests of various harsh natural environments such as steep slopes, boulders, jungles, snowfields and rivers, but it also needs to be capable of carrying rescue personnel and equipment in mountainous areas without roads. Amphibious all-terrain vehicles can well undertake this arduous task.
Water rescue
For areas with frequent floods, water rescue tasks are indispensable. However, floods and urban waterlogging are often accompanied by bad weather and rough terrain. Inflatable boats need to be carried by different means of transportation multiple times and transferred several times. Amphibious all-terrain vehicles can easily pass through environments such as water flooding, mud, and swamps without the need for manual transportation. They can freely switch between land driving and water walking, and arrive at the scene for rescue in the shortest time.
Medical rescue
The amphibious all-terrain vehicle provides auxiliary services for ambulances on rough roads. When ambulances cannot safely pass through areas, the amphibious all-terrain vehicle can climb over various types of obstacles and promptly reach the location where the injury occurs. In an emergency, you can take a direct route to reach the scene more quickly. Additional stretchers and anti-toppling structures mean that patients or injured people can receive safe and rapid medical care.
Ii. Scope of Application
Fire fighting and extinguishing
Search and rescue
Mountain rescue
"Water rescue"
"Medical rescue"
Iii. Product Features
1) It is fully amphibious, capable of wading and crossing water to pass through water obstacles.
2) High power, large horsepower, and large torque, with strong obstacle-crossing ability during driving;
3) System optimization and comprehensive integration of lightweight, highly mobile and highly passable transportation platforms;
4) A lightweight frame-type thin-shell vehicle body with high self-protection function, a walking power distribution device with large load-bearing capacity and high passability;
5) High safety: Equipped with a water rescue monitoring device, it can detect whether there is any leakage of electricity in the water. It can detect the leakage of 120/240-volt lines within 3 meters and has a built-in GPS positioning system. The bottom shell is made of bulletproof material to prevent it from being penetrated.
6) Strong operability: No different from conventional cars, it is simple and easy to operate.
7) Multiple reserved interfaces for hydraulic tools (for fire rescue and other equipment) (optional);
8) It has long-distance intercom function and amplification function (optional).
Iv. Main Technical Indicators
Main technical parameters:
1. Main technical parameters:
1.1 Vehicle body parameters
1) Body material: High-strength steel, and the vehicle components adopt a closed design
2) Total vehicle weight: ≤2450kg
3) Rated load capacity: 500kg or 8 people
4) Vehicle body dimensions: ≤5340×1880×2060
5) Minimum ground clearance: 205mm
6) Wheelbase: 2800mm
7) Track: 1550mm
1.2 Dynamic Parameters
1) Engine type: Vertical, in-line four-cylinder turbocharged and intercooled
2)▲▲ Displacement: 3.76L TDI
3) Horsepower: 116HP
4) Maximum output power: 85KW
5)▲▲ Maximum torque (N.m) : 290
6) Rated speed: 3000rpm
7) Transmission modes: Manual 5 forward gear, neutral gear, reverse gear
8) Fuel grade: 0# diesel (Change the diesel model according to different regions)
9) Fuel tank capacity: 80L
1.3 Performance Parameters
1) Starting method: Electric starting by key switch
2) Drive mode: Four-wheel drive, part-time four-wheel drive
3) Integrated digital instrument panels: speedometer, tachometer, odometer, oil pressure display, handbrake indicator light, lighting, etc
4) Maximum speed: On land: ≥95km/h; On water: ≥12km/h
5) Maximum climb: ≥25°
6) Suspension: Leaf spring type non-independent suspension
7) Transmission: Mechanical five-speed transmission
8) Tire specification: 245/75R16
9) Braking: Drum braking
10) Approach Angle: ≥35°, departure Angle ≥25°
11) Obstacle crossing: ≥500mm
12) Trench crossing: ≥1000mm
13) Minimum turning radius: ≤15m
14) Operating mode: Steering wheel
15)▲▲ Water Rescue Integrated Monitoring device: Wireless video transmission: Real-time video can be viewed through the APP end. Video storage: Equipped with a 256G memory card. Intercom function: Communication can be conducted when the APP end is 3000m away from the hull end. Amplification function, amplification distance ≥500m. Leakage detection function: Equipped with a handheld leakage detector.
16) Multiple interfaces equipped with hydraulic tools (capable of providing hydraulic driving force for hydraulic axial flow water pumps, hydraulic slurry pumps, hydraulic circular saws, hydraulic diamond (sand) chain saws, and hydraulic crushing picks) (optional)
|
